FlatJet Nozzle

Wide, flat spray pattern, ensuring uniform coverage of the target area

10 L Tank

Hight Density Poly-Ethylene Tank having capacity of 10 L for carrying agrochemicals

Centrifugal Atomizer

Finer spray suitable for applications where creating a mist or fine droplets is needed

System Specifications

  • System Specifications

    Overall Dimensions - 2026 x 1822 x 716 mm (L x B x H)
    Drone Class - Medium
    Battery Capacity - 25200 mAh
    Maximum Take-off Weight - 27.50 kg
    Flight Modes - Loiter, Autonomous, RTL, Brake, Auto-Land

  • Flight Performance

    Maximum Endurance - 22 minutes (With Payload) 29 minutes (Without Payload) 12 minutes (Hover at Full Payload Weight)
    Maximum Speed - 10 m/s
    Maximum Height - 25 m (Above Ground Level) 2608 m (Above Mean Sea Level)
    Maximum Wind Resistance - 5 m/s
    Maximum Range - 1500 m

  • Spray System

    Nozzle Options - Four Flat Jet Nozzles (Option 1) Two Centrifugal Nozzles (Option 2)
    Droplet Size - 145-225 microns, 100-200 microns
    Spray Width - 4 m, 6 m
    Tank Volume - 10 L
    Spray Flow Rate - 4 L/min (variable)
    Recommended Flight Speed for Spraying Operations - 2-6 m/s
    Spraying Efficiency - 1 acre in 5-8 mins (upto 30 acres/day)

  • Features & Capabilities

    Obstacle Avoidance Capability - Radar Based
    Terrain Following Capability - Radar Based
    Camera - 720p with LED Flashlight
    GCS - 7 inch Android Tablet
    Network Capability - Yes (4G enabled)
    Suitable Agrochemicals - Fertilizers, Pesticides, Nano Urea, Nano DAP
    Failsafe Features - Low Battery, Empty Tank, Communication Loss, Fence Breach, GNSS Loss
    Autonomous Mission Capability - GPS based Waypoint Navigation
350+

Drones Manufactured

250+

Pilots Trained

11

Projects Completed

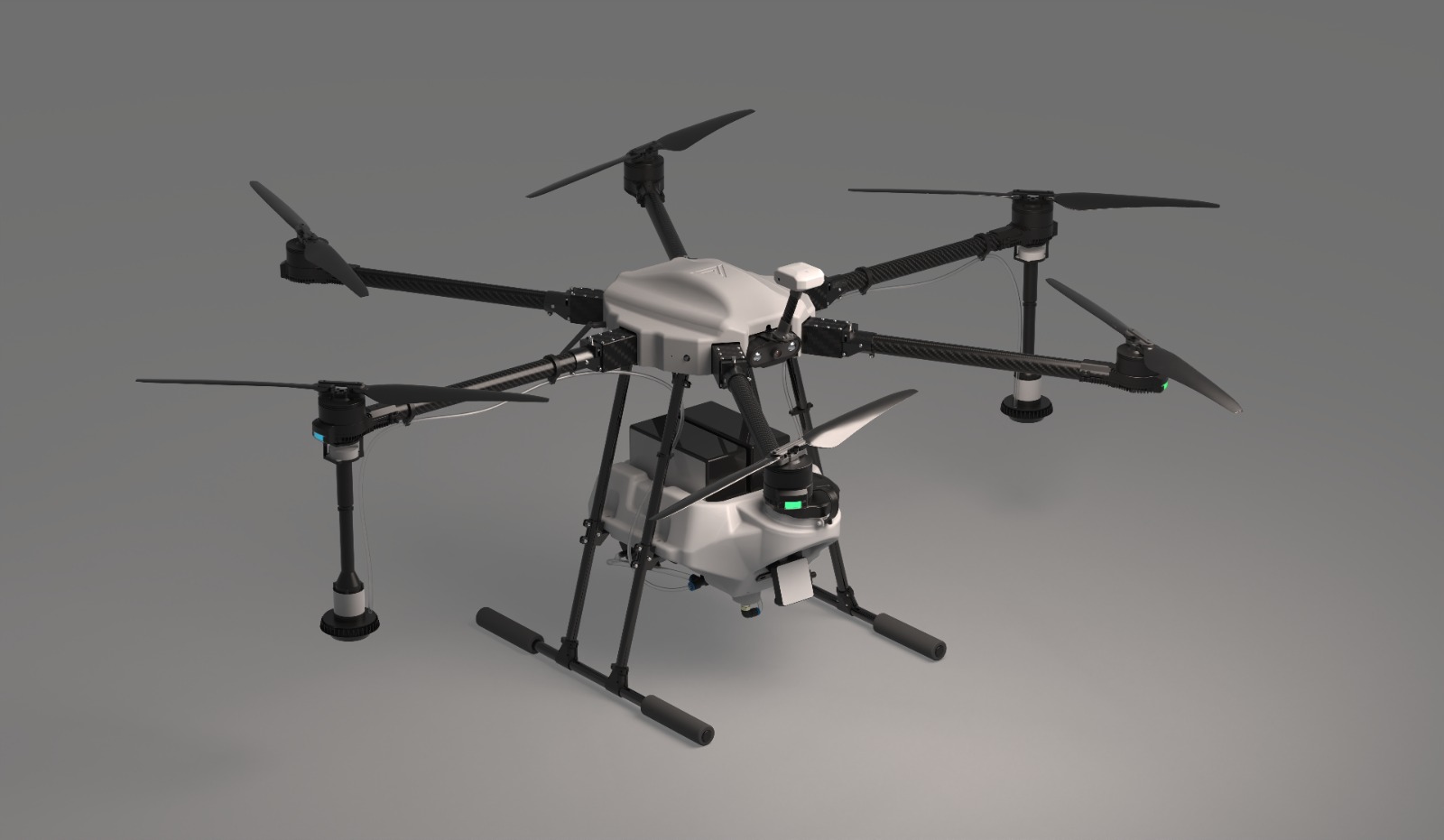

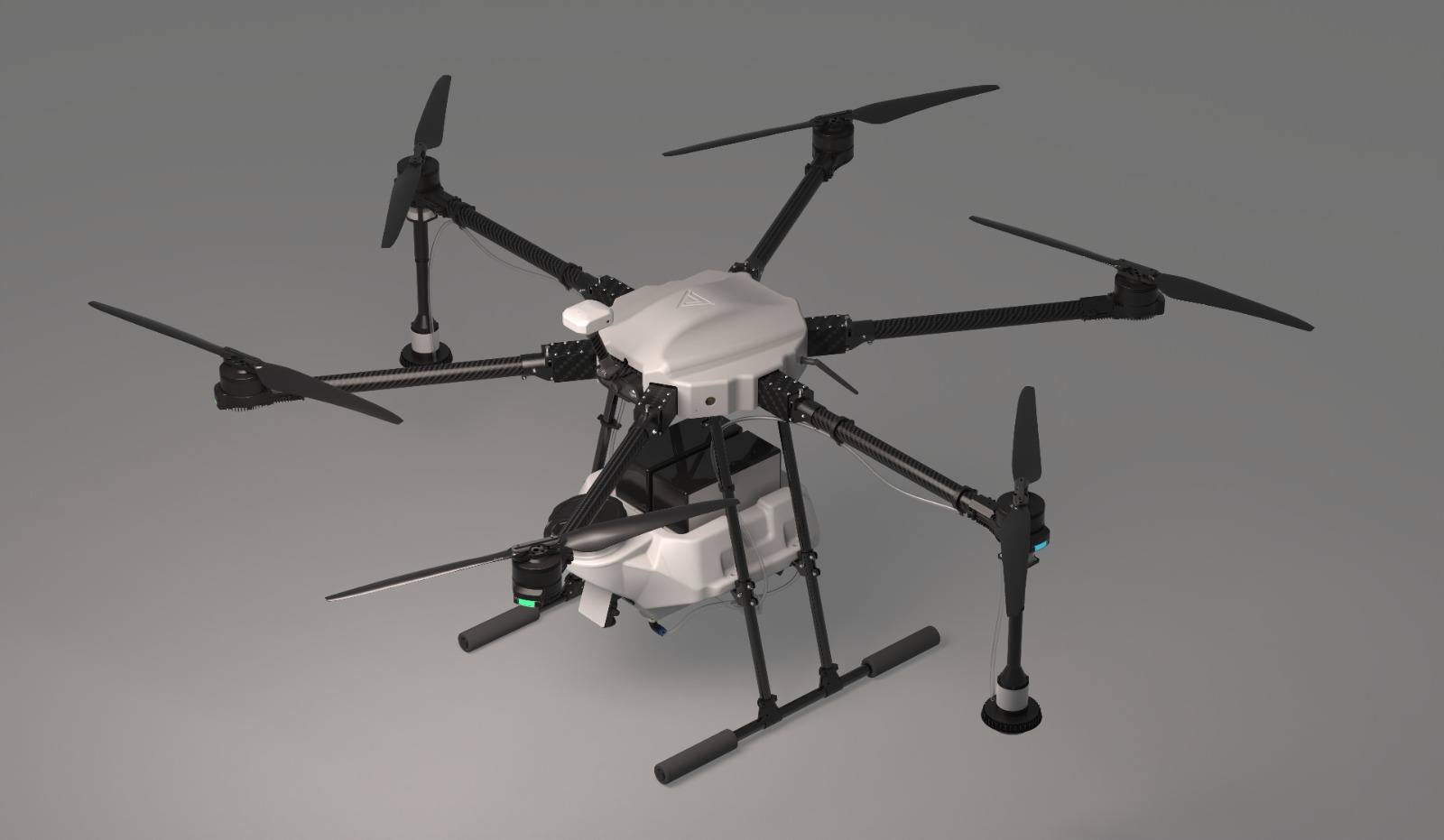

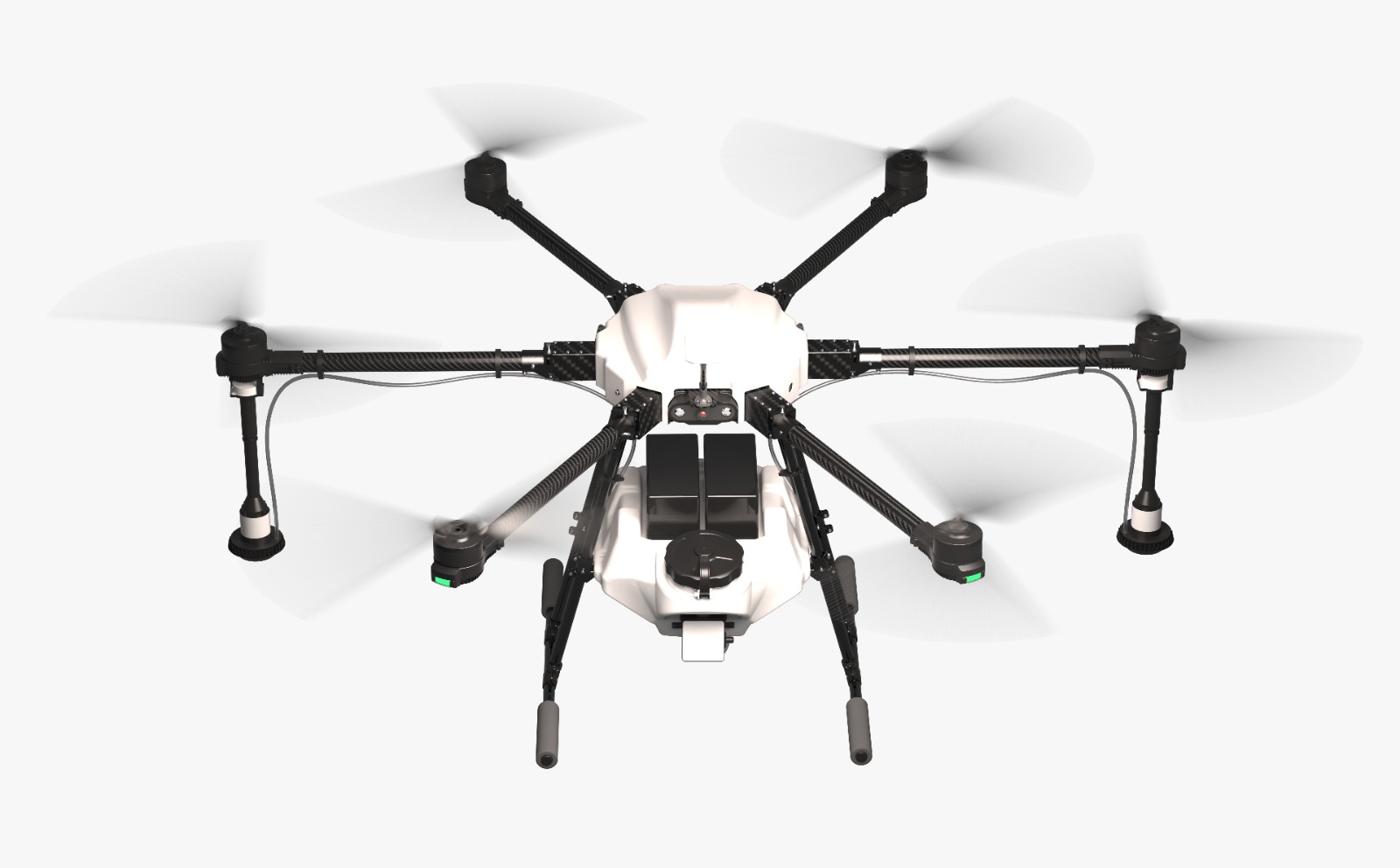

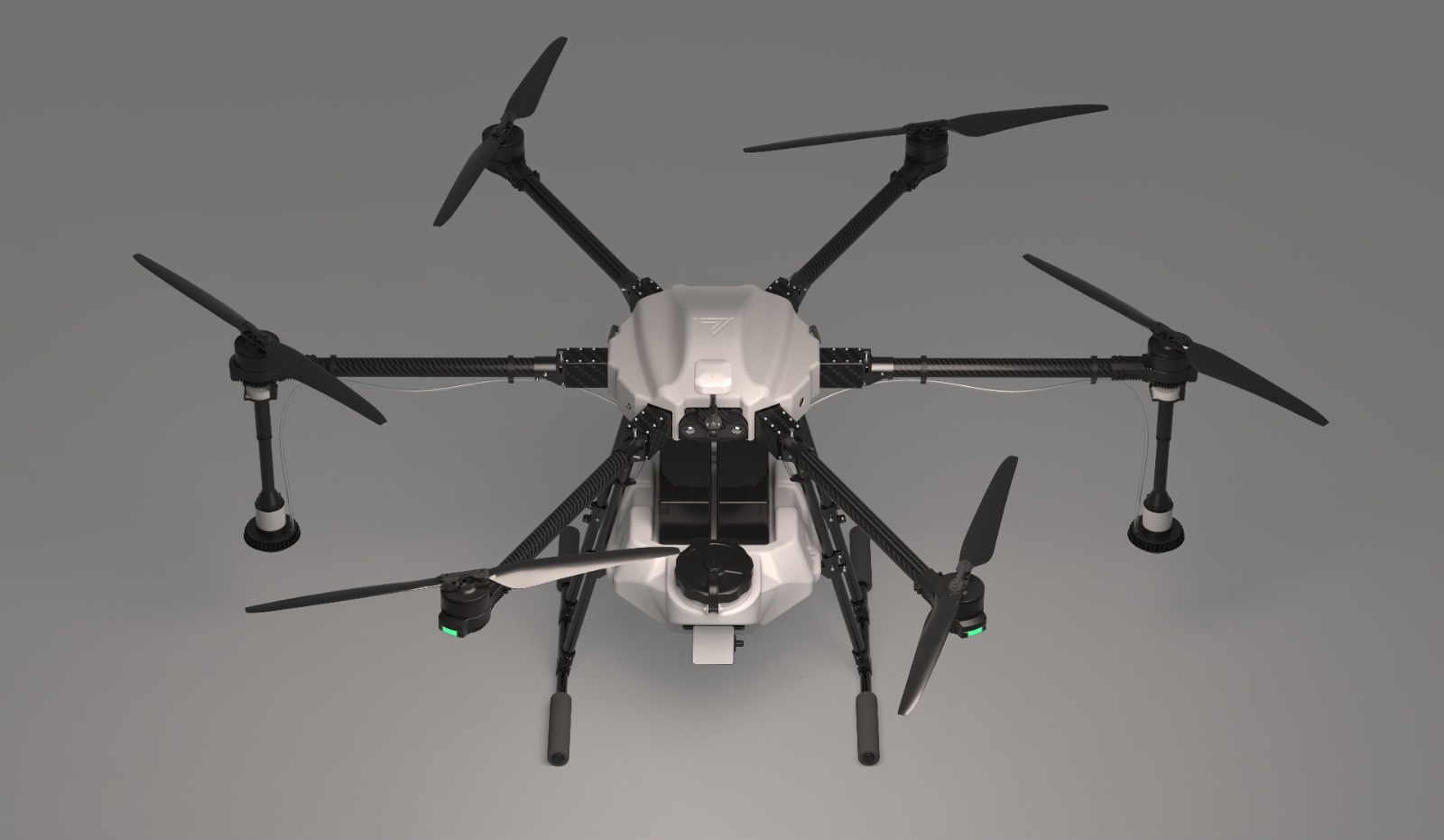

Prodct Images
